Ultrasonic Lace Sewing Machinery

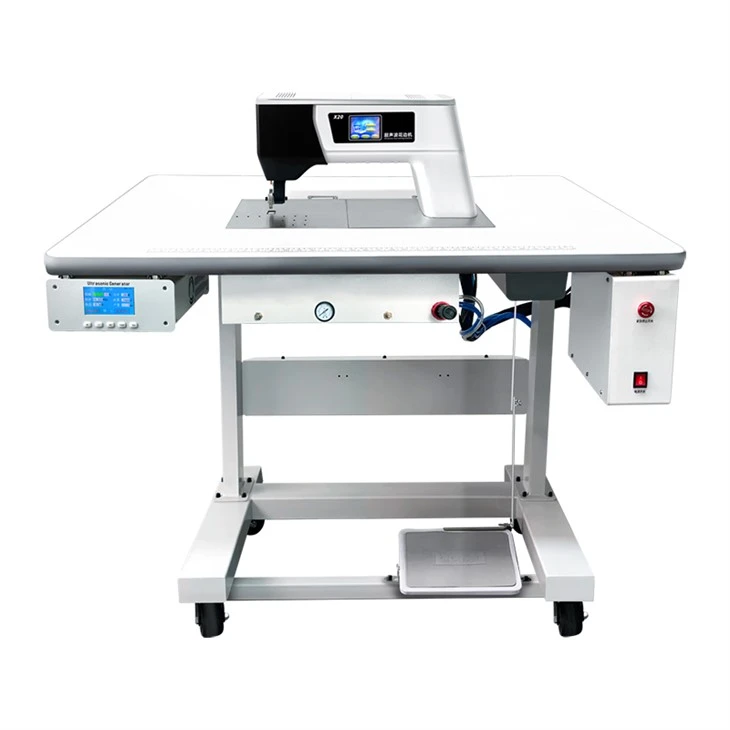

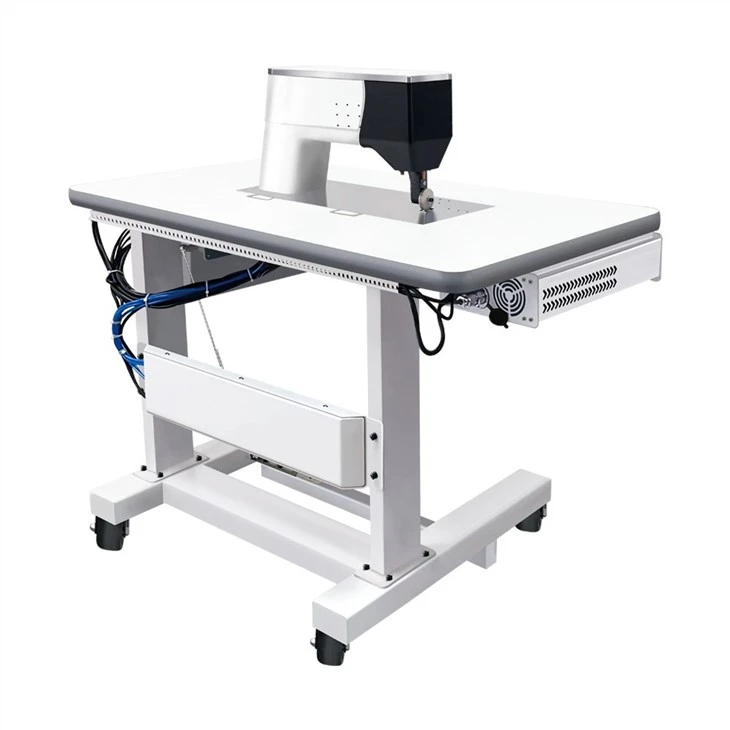

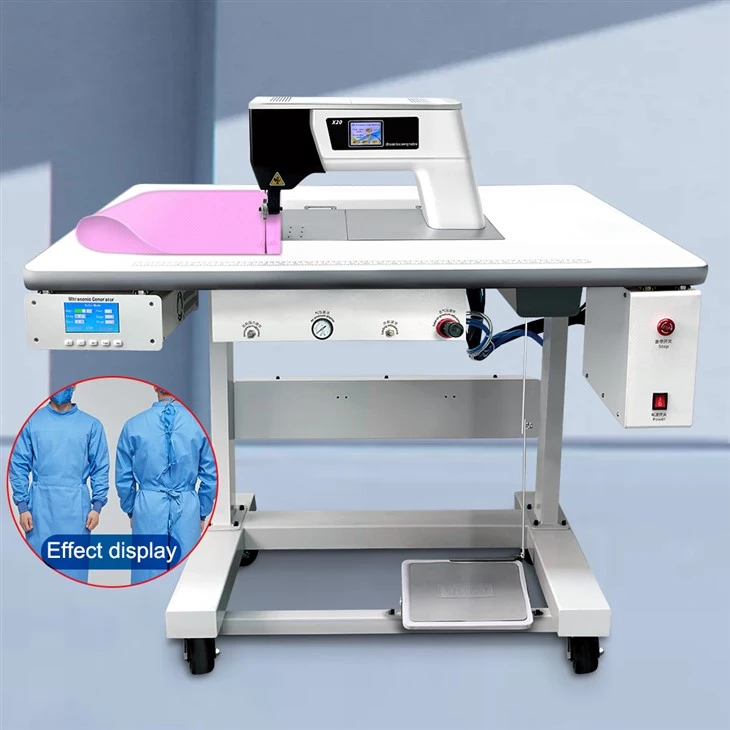

X20 Ultrasonic Lace Sewing Machinery is a 35khz intelligent ultrasonic welding machine and it equipped with intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head. No matter it is used in cutting, welding, and stitching. After welding sewing, the product is flat, wrinkle-free, and highly efficient. The whole size machine has HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and other functions.
X20 Ultrasonic Lace Sewing Machinery is a 35khz intelligent ultrasonic welding machine and it equipped with intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head. No matter it is used in cutting, welding, and stitching. After welding sewing, the product is flat, wrinkle-free, and highly efficient. The whole size machine has HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and other functions.
Parameters
| Model | X20 | X20S |
| Ultrasonic frequency | 35KHz | 35Khz |
| Ultrasonic power | ≤1000W | ≤1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic booster | / | / |
| Motor | Stepper motor + reducer400W 2.7A 1.27NM | Stepper motor + reducer400W 2.7A |
| Reducer | Ratio 1:10 | Ratio 1:10 |
| Working methods | Radially external | Radially external |
| Boding width | ≤8mm | ≤8mm |
| Flower wheel diameter | 45mm | 45mm |
| Max speed | 40m/min | 40m/min |
| Working space | 360mm*130mm | 360mm*130mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*700mm*1130mm | 1250mm*700mm*1130mm |
| Weight | 129.3KG | 129.3KG |
Ultrasonic Lace Machine Features:
1. Trimming: The flower wheel with the blade is ultrasonically vibrated under the action of the pressure, and the unilateral cutting is performed, and the edge melting effect is performed, so that the edge is smooth, not rough, without burrs, and meets the quality requirements.
2, Bronzing: Under the action of ultrasonic, to print the transfer paper or gold aluminum paper on the cloth, so that the product is more characteristic and beautiful.
3. Welding: Two pieces of chemical fiber cloth or two pieces of plastic cloth are under the action of ultrasonic waves flower wheel under the rolled pressure to weld the two pieces of cloth together. It can replace cordless sewing and has strong weld strength.

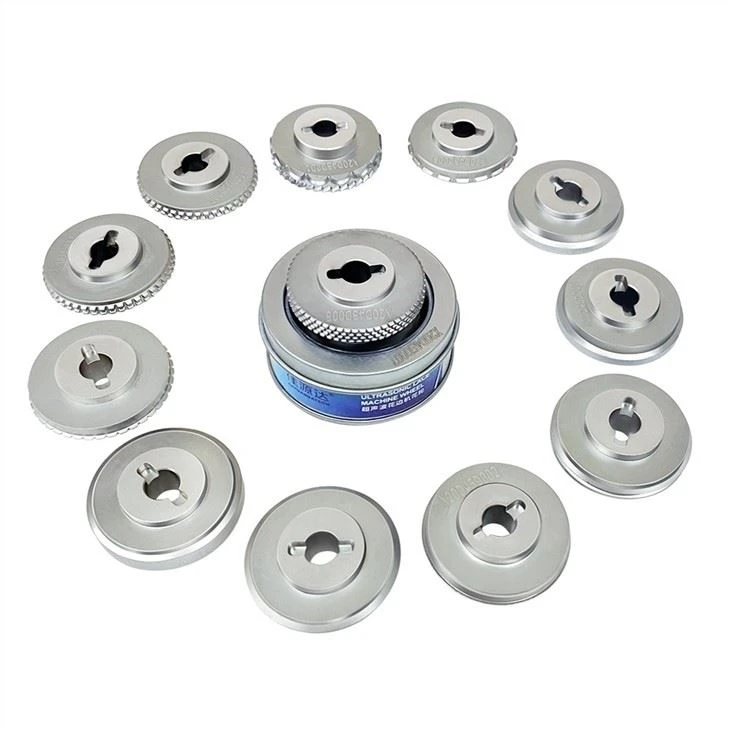

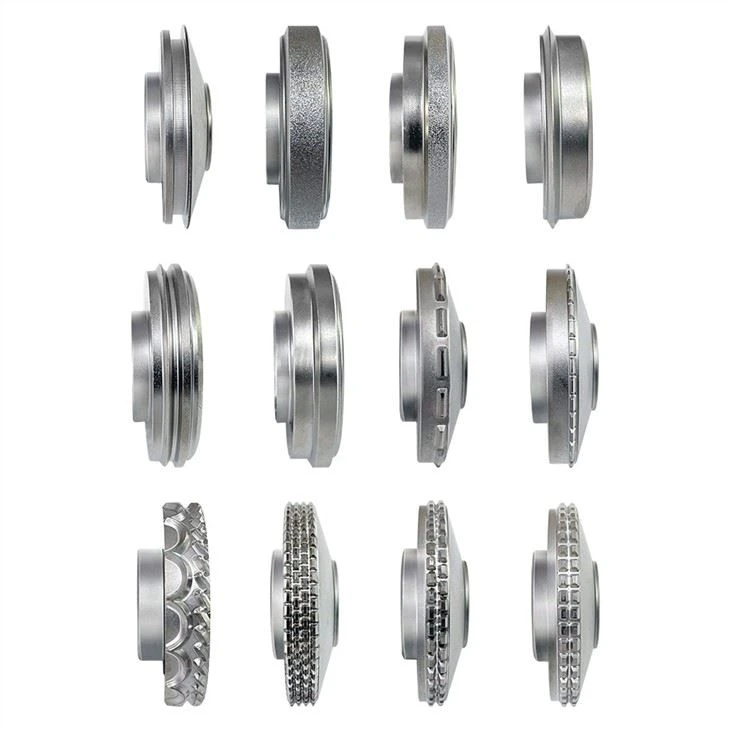

4. Section: The flower wheel of Ultrasonic Lace Sewing Machinery is designed with a knife edge, after cutting single or multiple layers fabric, the cut edges are free of burrs.
5. Forming: The flower wheel requires special design, so that under the action of ultrasound, the fabric can be cut and the pattern is realistic and colorful.
For more details of Ultrasonic Lace Sewing Machinery, please feel free to contact us!
