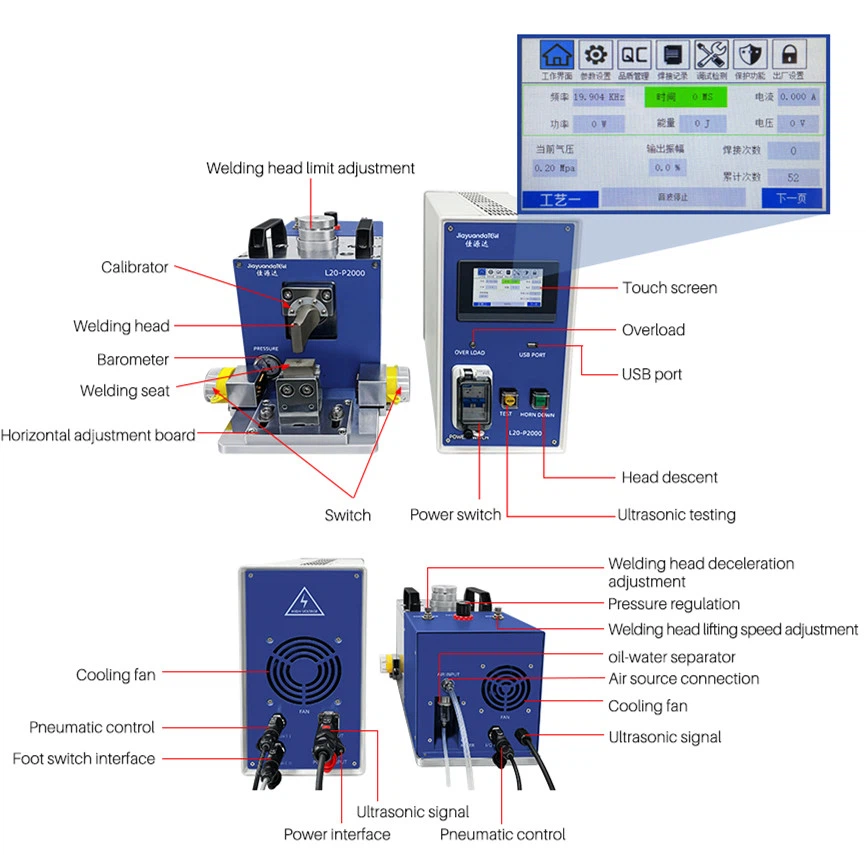

Ultrasonic Welding Lithium Battery
The ultrasonic welding lithium battery equipment adopts excellent mechanical structure design, with reliable distance, pressure sensing system and precision proportional valve pneumatic system, high welding precision, stable and reliable output.
Ultrasonic welding lithium battery equipment adopts excellent mechanical structure design, with reliable distance, pressure sensing system and precision proportional valve pneumatic system. It has high welding accuracy and stable and reliable output. Various welding result specifications can be monitored online and offline, and the welding quality can be monitored at any time. The data network storage function provides customers with intelligent quality management. A variety of metal welding fields, such as: automotive industry, power battery, consumer electronics, wire harness and terminal welding, motor industry... etc., can meet various applications in the market.
Parameters
| Product model | L40-P800 | L20-P2000 | L20-P4500 |
| Power supply | Single phase AC220V/AC110V switchable 50Hz | Single phase AC220V/AC110V switchable 50Hz | Single phase AC220V/AC110V switchable 50Hz |
| Air supply | Compressed air 0.1-0.6MPa | Compressed air 0.1-0.6MPa | Compressed air 0.1-0.6MPa |
| Ultrasonic peak power(W) | 800 | 2000 | 4500 |
| Maximum power of the machine(W) | 1000 | 2000 | 4500 |
| Ultrasonic frequency(KHz) | 40 | 20 | 20 |
| Maximum ultrasound time(s) | 0.4s | 0.4s | 0.4s |
| Adjustable accuracy of ultrasound time(s) | 0.01s | 0.01s | 0.01s |
| Ultrasonic mold connection thread size | M8*1.25 | 1/2*UNF | 1/2*20UNF |
| Data output | Can export each welding data from an external USB drive | Can export each welding data from an external USB drive | Can export each welding data from an external USB drive |
| Upper mold size(mm) | 4×4 | 4×4 8×4 | 12×4 8×4 |
| Bottom mold size | 20×20 quick disassemble and replaceable | 20×20 quick disassemble and replaceable | 20×20 quick disassemble and replaceable |
| Maximum number of welding layers | 20 layers of copper foil (negative electrode) 20 layers of aluminum foil (positive electrode) | 30 layers of copper foil (negative electrode) 30 layers of aluminum foil (positive electrode) | 60 layers of copper foil (negative electrode) 60 layers of aluminum foil (positive electrode) |
Product features:
1. High efficiency: Our ultrasonic metal welding machine adopts high-frequency vibration technology, with fast welding speed and high efficiency, which can greatly improve work efficiency.
2. Good stability: Our welding machine uses high-quality raw materials and accessories, with characteristics such as high strength, high stiffness, low vibration, and good stability, which can ensure a more stable welding effect.
3. Environmental protection and energy conservation: Our ultrasonic metal welding machine adopts flameless welding technology, which will not produce any toxic and harmful gases and noise, and is not harmful to the environment and human body. At the same time, it saves energy consumption and waste.
4. Strong versatility: Our ultrasonic metal welding machine is suitable for welding various metal and alloy materials, with a wide range of applications, and can meet the production needs of different fields and industries.
5. Easy to operate: Our welding machine has a humanized design, which is easy to operate and easy to get started, truly achieving the goal of "learning at once".
FAQ
Q: What are the methods of ultrasonic welding lithium battery maintenance?
A: The following points should be paid attention to when maintaining metal welding equipment:
1. Maintain good heat dissipation and ventilation of the parts.
2. Regularly check whether the wire connectors are loose.
3. Always keep the welding head, bottom mold and working objects clean.
4. Regularly touch yellow grease and keep it clean.
5. Keep the air unblocked in the workplace, and the surrounding temperature should not be too high. (Below 400C)
6. To clean the air filter regularly, use detergent or water instead of volatile solvents.
7. Wipe the machine regularly, but do not use liquid to clean it. Do not place heavy pressure or place fluid on the top of the vibration box.
8. When moving the machine, the vibration box should be separated from the machine body (disconnect the cable socket), and the handling must be carried out carefully and not subject to impact.
9. When not in use for a long time, please wipe the appearance of the machine for maintenance, and cover it with the cover of the machine, and place it in a dry and ventilated place.
10. The upper cover of the control box should be opened every month, and a clean air gun without moisture should be used to remove the dust in the box.
For more details of Ultrasonic Welding Lithium Battery Machine, please feel free to contact us !
