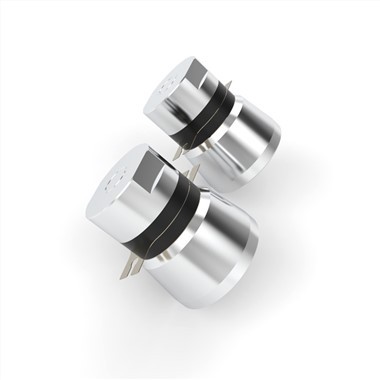

Ultrasonic Cleaning Convertor

Ultrasonic Cleaning Convertor, also known as ultrasonic vibrating head and ultrasonic cleaning transducer, and this is the core component of ultrasonic cleaning machine and which belongs to piezoelectric ceramic material. The common ultrasonic transducers power has 35W, 50W, 60W, and 100W. The ultrasonic frequencies has 20KHZ, 25KHZ, 28KHZ, 40KHZ, 68KHZ, 80KHZ, 100KHZ, 120KHZ or higher.

Ultrasonic Cleaning Convertor is composed of a central piezoelectric ceramic element, front and rear metal cover plates, prestressed screws, electrode sheets and insulating tubes.

According to different designs, the transducer shapes mainly include: column type (the diameter of the front and rear metal cover plates is the same), horn type (the diameter of the front cover plate is reduced by the arc transition), and the column type has a section in the middle and other structural shapes.

Specification:

Product features

1. High efficiency: high mechanical Q value, high electroacoustic conversion efficiency, high consistency and easy matching.

2. Strong amplitude: the ultrasonic cleaning convertor has high vibration speed and can handle working conditions quickly.

3. Good heat resistance: wide temperature range, low resonance impedance, continuous operation and low heating.

4. Piezoelectric ceramic materials are equipped with rare earth materials, which can effectively reduce the calorific value, improve the conversion rate and prolong the service life.

5. Full inspection products, good quality.

For more details of ultrasonic cleaning convertor, please feel free to contact us!
