Industrial Ultrasonic Transducer

In ultrasonic cleaning, industrial ultrasonic transducers can be divided into pzt8 ultrasonic transducers and pzt4 ultrasonic transducers according to the color of the piezoelectric ceramic plates used. Yellow film refers to the ceramic sheet of PZT-8 material, and the ceramic body of the material is brown yellow; Black sheet refers to the ceramic sheet of PZT-4 material used, and the ceramic body of this material is black.

Yellow ceramics are characterized by low heat, small amplitude and low capacitance. Low heat can reduce the performance attenuation of ceramics and have long service life. Low capacitance can make the circuit easy to match and have good stability

Black ceramics are characterized by large heat, large amplitude and large capacitance. The heat decays faster than that of ceramic, and the service life is shorter,Its performance is high available liquid level.

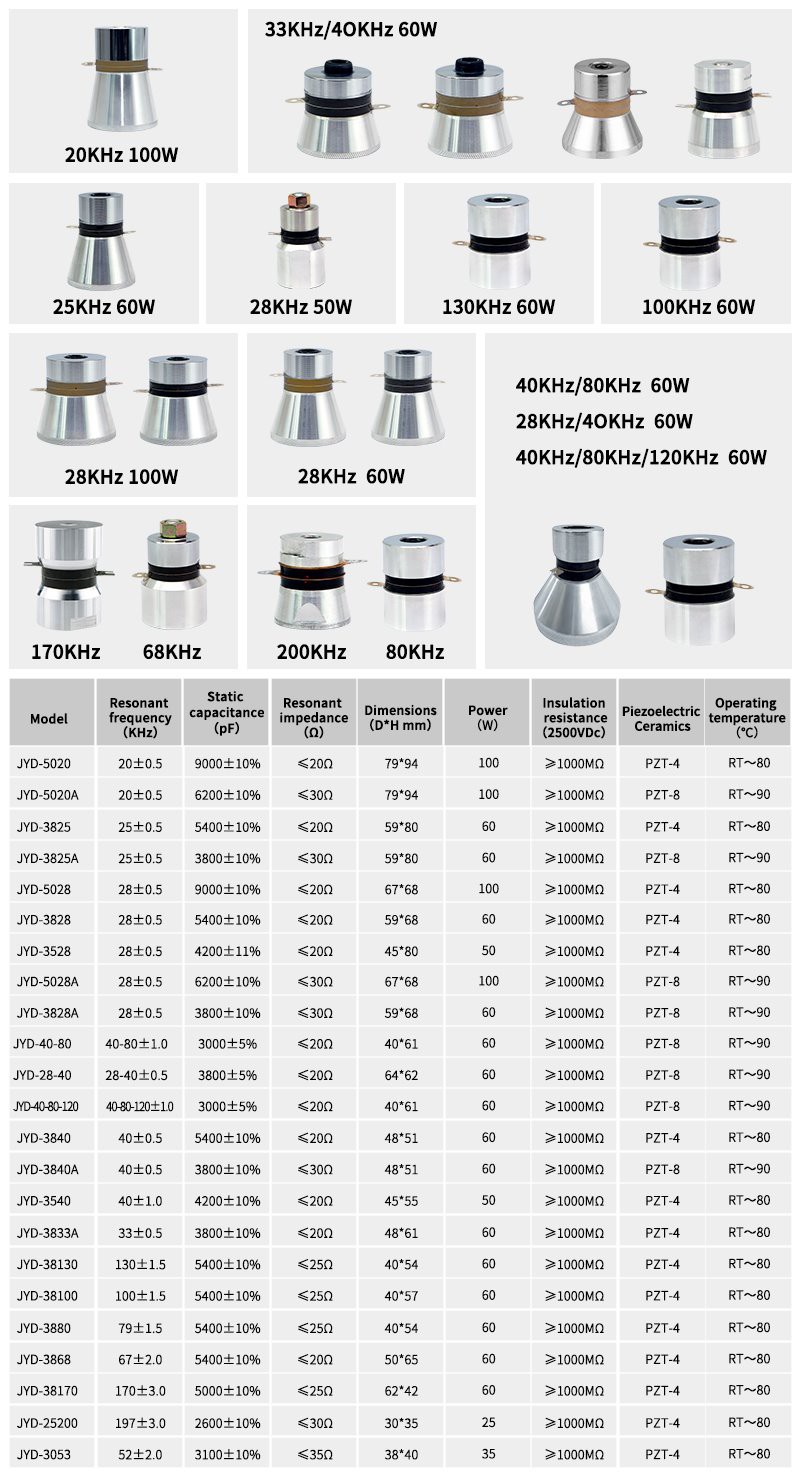

Specification:

FAQ:

What about the three parts in ultrasonic cleaning machine?

Ultrasonic cleaning machine three parts: cleaning tank, ultrasonic transducer, ultrasonic power supply

1. Ultrasonic cleaning tank

The cleaning tank is used to store the products to be cleaned. It is made of 304 stainless steel. 304 stainless steel has stable structure and super corrosion resistance, which can ensure that the cleaning tank can be used for a long time. For customers with special needs, heating and temperature control devices can be installed on the tank to control the temperature of the water

2. Industrial Ultrasonic Transducer

Ultrasound transducer can convert electrical energy into mechanical energy. After converting high frequency electrical energy into mechanical energy, the transducer will generate high frequency vibration with very small amplitude and spread to the cleaning tank. Through the action of mechanical energy, the dirt of the product will be removed to improve the cleanliness of the product.

3, Industrial Ultrasonic power supply

Ultrasound power supply is to ensure the smooth opening of the ultrasonic cleaning machine, the use of power supply can provide the inverter power supply required for the transducer, and to ensure that the transducer can work normally. The power supply of ultrasonic cleaning machine must be installed over current protection line to ensure the safety of use.

For the three parts of the ultrasonic cleaning machine, we can have targeted maintenance when using it, which can not only improve the service life of the ultra sonic cleaning machine, but also ensure the cleaning effect of the ulta cleaning machine.

What about the muti-frequency Industrial Ultrasonic Transducer?

Multi frequency ultrasonic cleaning transducers can be divided into continuous operation and pulse operation due to different processing methods and working requirements. Different working methods have different requirements for transducers. Continuous operation is a non-stop operation with a low working current and is generally used for cleaning purposes; Pulse work is intermittent, with occasional pauses, resulting in a high instantaneous current during operation. It is generally used on plastic and metal welding machines.

Multi frequency ultrasonic cleaning transducers have different regulations for the nominal power of machines with different purposes and purposes. In other words, the same ultrasonic transducer may have different nominal power when used on different machines. To avoid ambiguity, the structural type of the ultrasonic transducer is,

For example, column type, inverted horn type, and the diameter and number of piezoelectric ceramic chips.

The frequency of the multi frequency ultrasonic cleaning transducer can be selected from 17khz low frequency to 135khz high frequency, with a power of 50W or 60W. Multi frequency ultrasonic cleaning transducers are generally used in high-precision cleaning, medical cleaning, or special industry cleaning due to their particularity and cost-effectiveness.

For more details of industrial ultrasonic transducers, please feel free to contact us!
