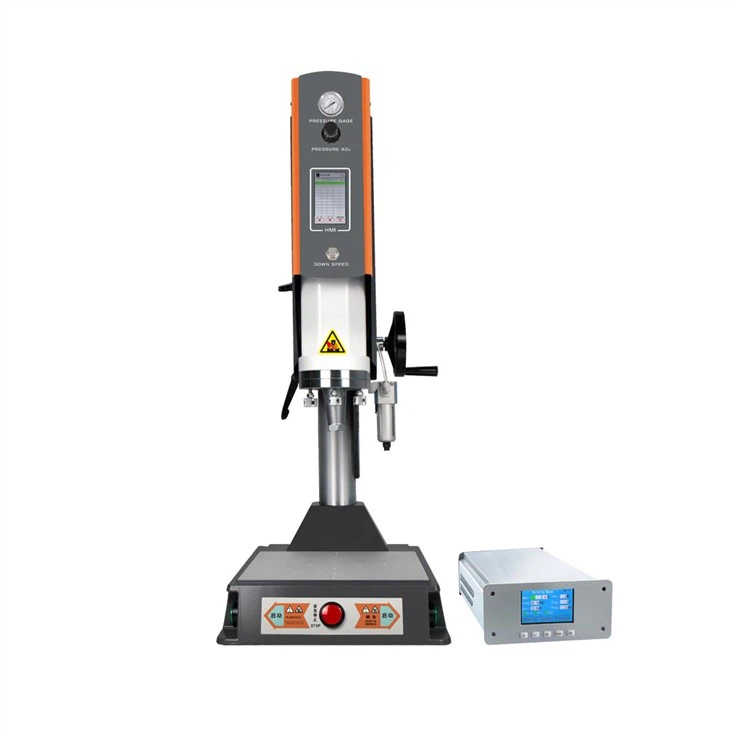

Mobile Charger Ultrasonic Welding Machine

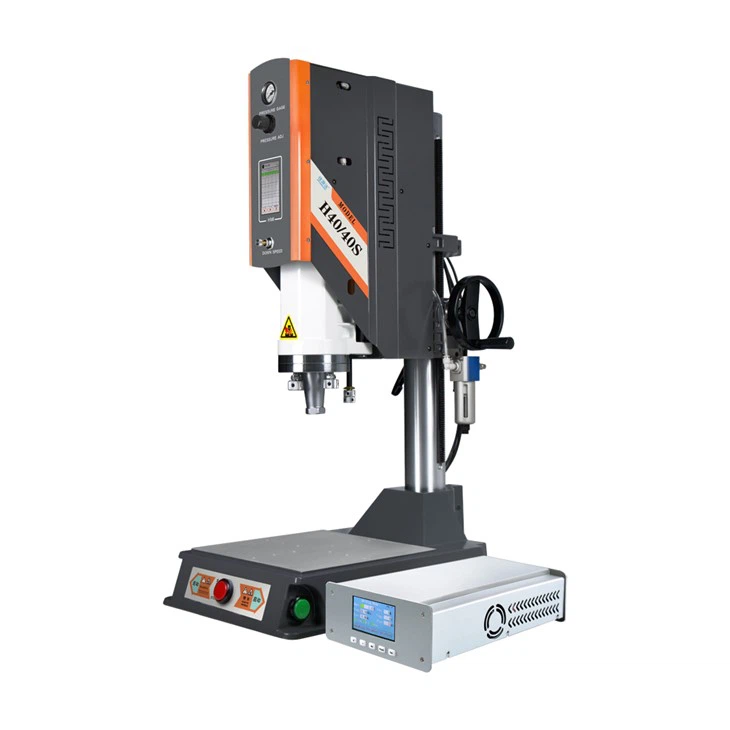

Jiayuanda H40/H40S ultrasonic plastic welding machine,it is an intelligent digital ultrasonic plastic welder machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application.....
Advantages of the mobile charger ultrasonic welding machine can results good repeatability, fast cooling and good sealing; the frequencies include 15KHz, 20kHz, 30kHz and 40KHz, which are suitable for work of any size, from the smallest electronic components to large instrument panels in the automotive industry; joints shall be smooth and clean; saving money, fast drying time and less raw materials; no separate screws or other fasteners, no touch up required.
Product Parameter
Products | H40 series Mobile Charger Ultrasonic Welding Machine | ||||||||
working frequency | 15KHZ | 15KHZ | 15KHZ | 20KHZ | 20KHZ | 28KHZ | 30KHZ | 35KHZ | 40KHZ |
Working power | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 1200W | 800W |
Working voltage/gas source | 220V±10% / 0.2～0.7Mpa | ||||||||
Welding stroke | 100MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM |
Dimensions mm | 750*900*1900 | 650*750*1880 | 390*630*1050 | 650*750*1880 | 390*630*1050 | ||||
Net weight | ≤260KG | ≤150KG | ≤85KG | ≤150KG | ≤85KG | ||||
Operation interface | 4.3 inch touch screen | ||||||||
FAQ
Q: How to Control the Unstable Quality of Mobile Charger Ultrasonic Welding Machine？
Unstable welding often occurs in the process of using ultrasonic welding machine, that is, some plastic parts have good welding quality, but always have defective products. Our common method is to replace the power of ultrasonic equipment. If the output power is not stable, it will lead to failure to form stable frictional heat energy. We can solve the problem by the following methods:
1. Change the machine output power;
2. HORN expansion ratio;
3. Air pressure source;
4. Voltage source, etc
The quality of welding products can be well stabilized by adjusting the air pressure and voltage. Stable air pressure source is very important. Adjusting the welding parameters of equipment can also solve this problem.
Q：Two polypropylene plastic parts are welded by ultrasonic wave, but they cannot be welded. What is the reason？
The ultrasonic welding of pp materials is difficult. It depends on the size and structure of your plastic parts. How high your welding line is now
For more details of Mobile Charger Ultrasonic Welding Machine, please feel free to contact us !
