Plastic Film Ultrasonic Welder

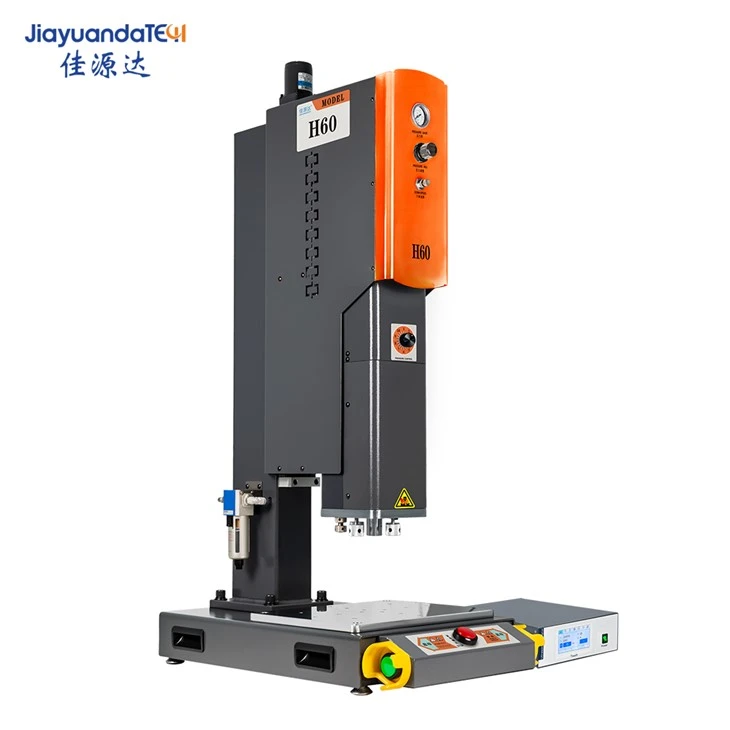

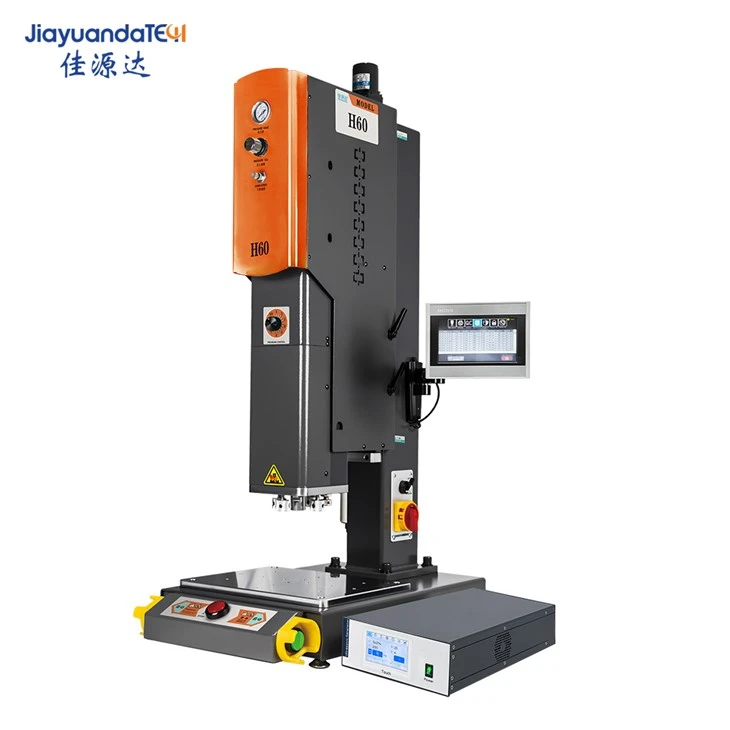

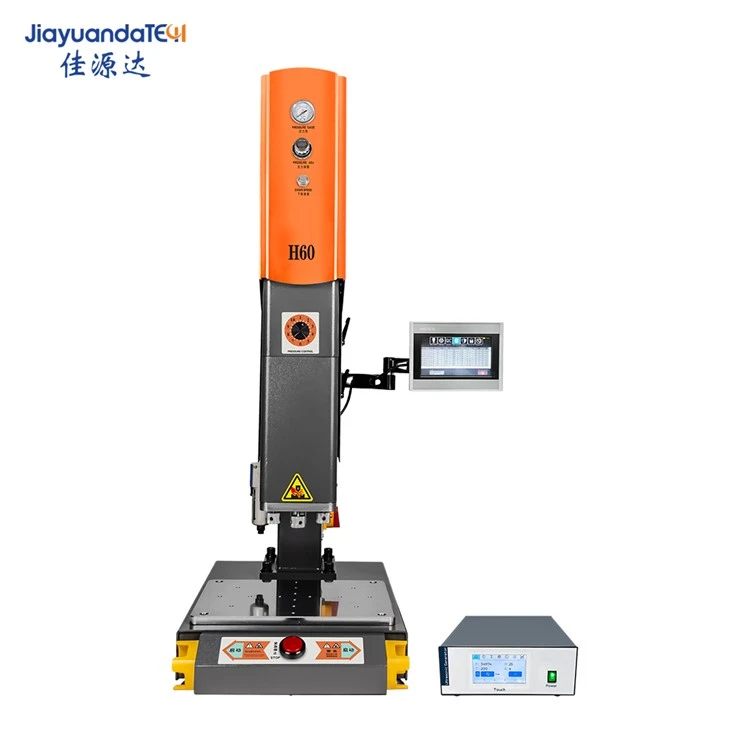

Jiayuanda Ultrasonic plastic welder machine-H60/60S. It is an intelligent digital ultrasound welding machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application....
As the connection process of industrial thermoplastic, ultrasonic welding has been well verified in practice. Especially in the production of mass-produced parts, this process has obvious advantages over the previous methods, such as high strength, clean welds, fast processing time, extremely low scrap rate and low energy consumption. In addition, the technology can be successfully used in riveting, forming, stacking and embedding of metal parts into thermoplastic materials. The Plastic Film Ultrasonic Welder adopts a new generation of ultrasonic welding technology, which greatly shortens the processing time and can complete the welding in a few milliseconds.
Product Parameter
Products | H60 Series Plastic Film Ultrasonic Welder | |||||||
Model No. | 15K-4200W | 15K-3200W | 15K-2600W | 20K-3000W | 20K-2500W | 30K-1200W | 35K-1200W | 40K-800W |
working frequency | 15KHZ | 15KHZ | 15KHZ | 20KHZ | 20KHZ | 30KHZ | 35KHZ | 40KHZ |
Working power | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 800W |
Working voltage/gas source | 220V±10% / 0.2～0.7Mpa | |||||||
Welding stroke | 100MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM |
The features of the plastic film ultrasonic welder :
1. Dovetail type main column, no deflection when the stroke moves.
2. Welding, piling, fall prevention, and inserting metal parts.
3. The horizontal plate has four balance points, which makes it easy to adjust the mold.
4. Current overload protection, automatic system, fast delivery.
Application fields:(ultrasonic welding machine )
It is widely used in the automotive industry, electronic industry, medical industry, household appliances, woven clothing, packaging industry, toy industry, etc., such as plastic body parts, doors, automotive dashboard, lamps, rear-view mirrors, sun visors, interior trim, filters, reflective materials, reflective nails, bumpers, cables, motorcycle plastic filters, radiators, water tanks, tray plates, etc.
Plastic electronic products: prepaid water meter, communication equipment, atheistic mobile phone, mobile phone accessories, mobile phone case, battery case, charger, maintenance valve regulated lead-acid battery, 3-inch floppy disk, U disk, SD card, CF card, USB interface, Bluetooth.
Toys and stationery: folders, photo albums, folding boxes, PP hollow boards, pen rings, ink cartridges, toner cartridges.
FAQ
What are the welding methods of plastic film ultrasonic welder?
●Fusion method
The ultrasonic high-frequency vibration welding joint is used to generate friction heat and instantaneous fusion on the surface of two plastic joints under medium pressure. The welding strength is comparable to that of the body. With appropriate artificial products and reasonable interface design, it can be watertight and airtight, and auxiliary equipment is used to eliminate inconvenience.
●Riveting welding
The ultra-frequency vibration ultrasonic welding joint presses the protruding end of plastic products into rivet shape, so that different materials can be mechanically riveted together.
●Embedding
Under the welding head and appropriate pressure, the machine can squeeze metal parts (such as nuts, screws, etc.) into the reserved plastic holes and fix them at a certain depth. It can avoid the damage of injection mold and the defect of slow injection molding.
For more details of Plastic Film Ultrasonic Welder, please feel free to contact us !
