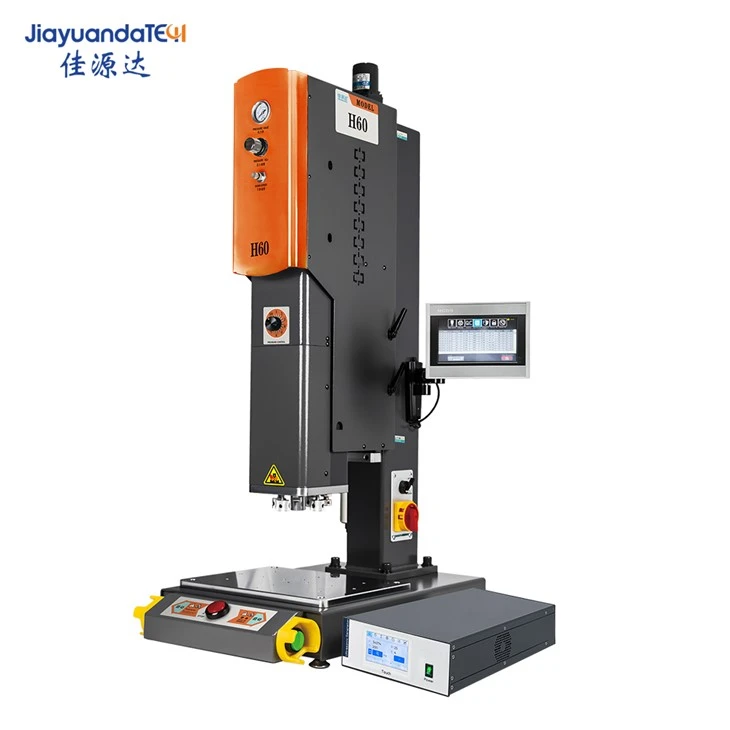

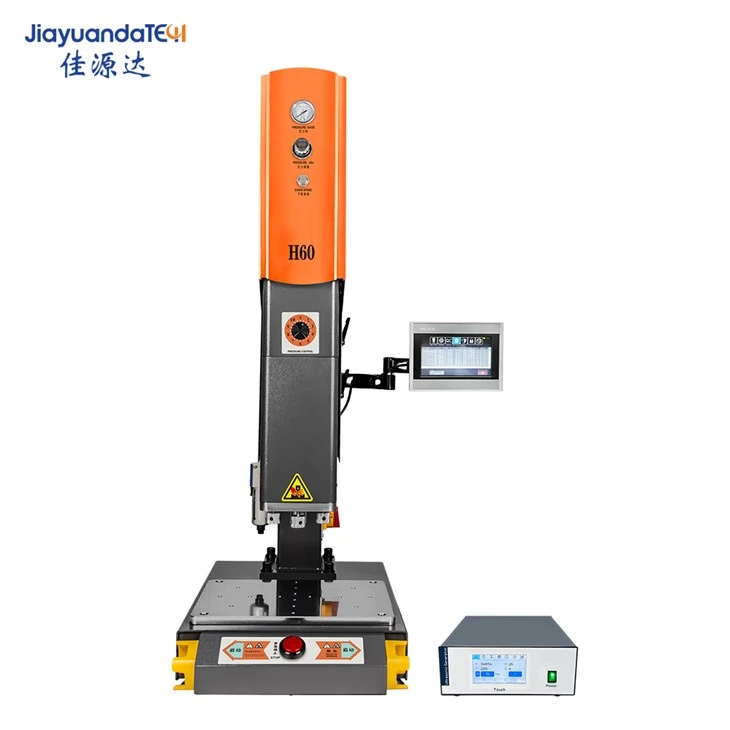

PP LED Bulb Ultrasonic Welding Machine
Jiayuanda Ultrasonic plastic welder machine-H60/60S. It is an intelligent digital ultrasound welding machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application....
Nowadays, all light bulbs are LED lamps, made entirely of plastic material, which is energy-saving, environmentally friendly, lightweight, and convenient for transportation. Traditional welding technology can no longer meet the welding needs of light bulbs. And ultrasonic welding perfectly solves the air and water tightness requirements of light bulbs, achieving seamless welding of LED bulbs.
Advantages of PP LED Bulb Ultrasonic Welding Machine:
1. Environmental protection, energy conservation, and high production efficiency.
2. Good air and water tightness, perfect for seamless welding of LED bulbs.
3. Beautiful appearance, no glue overflow, no discoloration.
4. Waterproof, anti mist, anti mosquito.
5. Firmly welded and structurally stable.
Product Parameter
Products | H60 Series PP LED Bulb Ultrasonic Welding Machine | ||||||||
Model No. | 15K-4200W | 15K-3200W | 15K-2600W | 20K-3000W | 20K-2500W | 30K-1200W | 35K-1200W | 40K-800W | |
working frequency | 15KHZ | 15KHZ | 15KHZ | 20KHZ | 20KHZ | 30KHZ | 35KHZ | 40KHZ | |
Working power | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 800W | |
Working voltage/gas source | 220V±10% / 0.2～0.7Mpa | ||||||||
Welding stroke | 100MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | |
FAQ
How is the welding effect of PP LED Bulb ultrasonic welding machine formed?
The ultrasonic welding machine converts the electric frequency of the current 50/60Hz into the electric energy of 20kHz or 40KHz through the transistor function device, and supplies the high-frequency electric energy to the converter of the ultrasonic welding machine. The converter converts electrical energy into ultrasonic mechanical vibration energy, and the pressure regulating device is responsible for transmitting the converted mechanical energy to the welding head of the ultrasonic welding machine. During the welding process, one workpiece is fixed, and the other workpiece is repeatedly vibrated on its surface at a frequency of 20/40KHz. At the same time, pressure is applied to the workpiece to form a firm bond between the workpieces, so that the ultrasonic welding machine can achieve the welding effect.
What are the advantages of ultrasonic plastic welding machine for welding LED lamps
The emergence of ultrasonic plastic welding machines perfectly solves this problem.
We all know that current light bulbs are LED lamps, and commonly used LED lamps are divided into two types: bulbs and tubes. In order to meet the requirements of energy conservation, environmental protection, lightweight, and convenient transportation, manufacturers have already changed their original glass products to PC plastic materials. It is precisely due to the changes in materials that traditional fusion welding techniques such as adhesive bonding and screw locking are no longer able to meet the welding needs of lighting fixtures. The traditional method not only causes the lighting fixtures to be not aesthetically pleasing, but also leaks air, water, and even moths to enter the bulbs. At this time, the emergence of ultrasonic plastic welding machines perfectly solves this problem.
Welding LED light bulbs with ultrasonic plastic welding machine not only has a beautiful appearance, but also does not overflow or discolor
Using an ultrasonic plastic welding machine to weld LED bulbs not only has a beautiful appearance, but also does not overflow or discolor. The air and water tightness are also very good, perfectly achieving seamless welding of LED bulbs. The effect is very solid, not only environmentally friendly and energy-saving, but also highly efficient in production. It meets the requirements of waterproof, anti mist, and anti mosquito welding.
For more details of PP LED Bulb Ultrasonic Welding Machine, please feel free to contact us !
