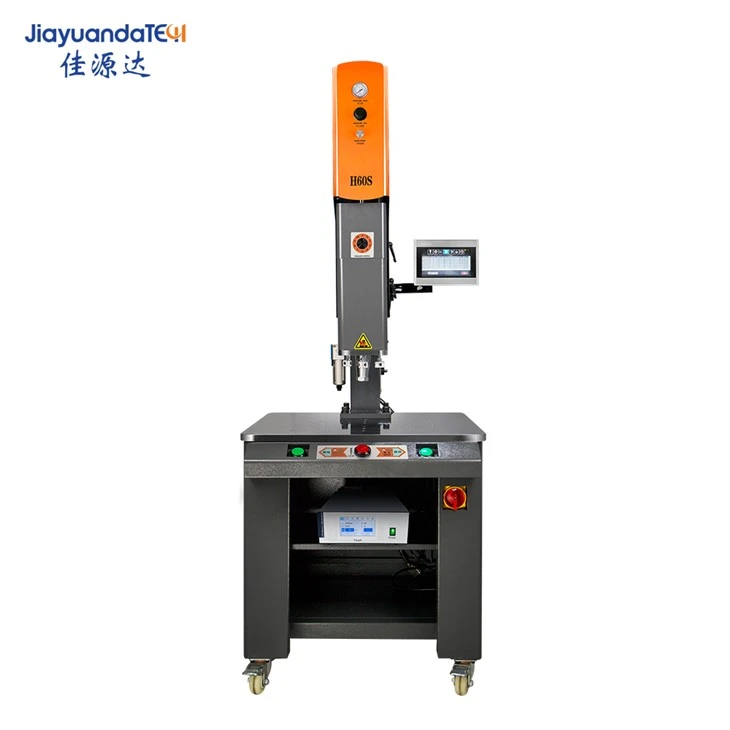

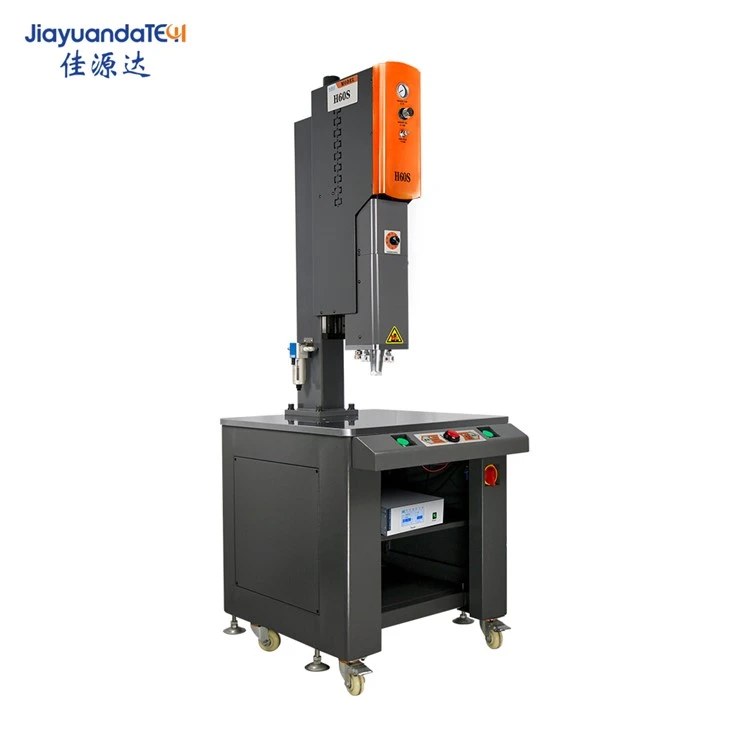

Ultrasonic Plastic Riviting Welder
Jiayuanda Ultrasonic plastic welder machine-H60/60S. It is an intelligent digital ultrasound welding machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application....
After new improvements, the ultrasonic plastic cutting welder has more optimized performance. It adopts the original piezoelectric ceramic transducer, with strong and stable output. It has a special steel horn, which is durable. Frequency modulation and frequency automatic compensation circuit. It adopts a horizontally adjustable structure of welded joints, which is convenient for mold adjustment. The whole machine has high welding efficiency and low defect rate. It is easy to operate. The shell adopts square column and metal plate welding, which can avoid reverse. The Ultrasonic Plastic Riviting Welder can customize / replace the welding head according to the product requirements. The operator can click the left and right green buttons to start with both hands, and the operation mode complies with CE safety regulations.
Product Parameter
Products | H60 Series Ultrasonic Plastic Riviting Welder | |||||||
Model No. | 15K-4200W | 15K-3200W | 15K-2600W | 20K-3000W | 20K-2500W | 30K-1200W | 35K-1200W | 40K-800W |
working frequency | 15KHZ | 15KHZ | 15KHZ | 20KHZ | 20KHZ | 30KHZ | 35KHZ | 40KHZ |
Working power | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 800W |
Working voltage/gas source | 220V±10% / 0.2～0.7Mpa | |||||||
Welding stroke | 100MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM |
Product feature and application
1. High quality ultrasonic transducer, high power, good stability.
2. Mechanical limit adjustment, high precision.
3. The overall design standard of the welded joint ensures that the welding is not offset.
4. The four angle level is adjustable, and the conversion mode is convenient.
5. Strong power output stability.
6. The horn is durable.
7. Automatic frequency tracking system.
8. A full set of high-quality imported parts are assembled with reliable performance.
9. The welding speed is fast, and each welding time is only 0.01-9.99 seconds.
10. Compact design and small space.
11. Low noise.
12. Low energy consumption, high efficiency, no deformation, no pollution, firm welding, convenient operation.
13. It can accurately set and quickly adjust parameters.
14. The metal paint box is beautiful in appearance, durable and drop resistant.
FAQ
Q: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, we can do. Please tell us your idea or your application. If you have sample object,send it to us or send detail pictures.
Q: Could we as your agent?
A: Of course.We are looking for sole agent in Country who have the willing to cooperate with us for long business term.
Q: When will you send out the ultrasonic machine after receiving the order?
A: Based on the order quantity, the goods will be send out within 2 -7days.
Q: How about the quality guarantee period of ultrasonic plastic riviting welder?
A: One year! Except for the horn.
Q: How can you guarantee the production quality?
A: We have more than 10 years production experience and we have strictly quality control system in our production process. 4 times inspection for each ultrasonic machinebefore the delivery, Third part inspection acceptable.
For more details of Ultrasonic Plastic Riviting Welder, please feel free to contact us !
