Ultrasonic Cf Cards Welding Machine

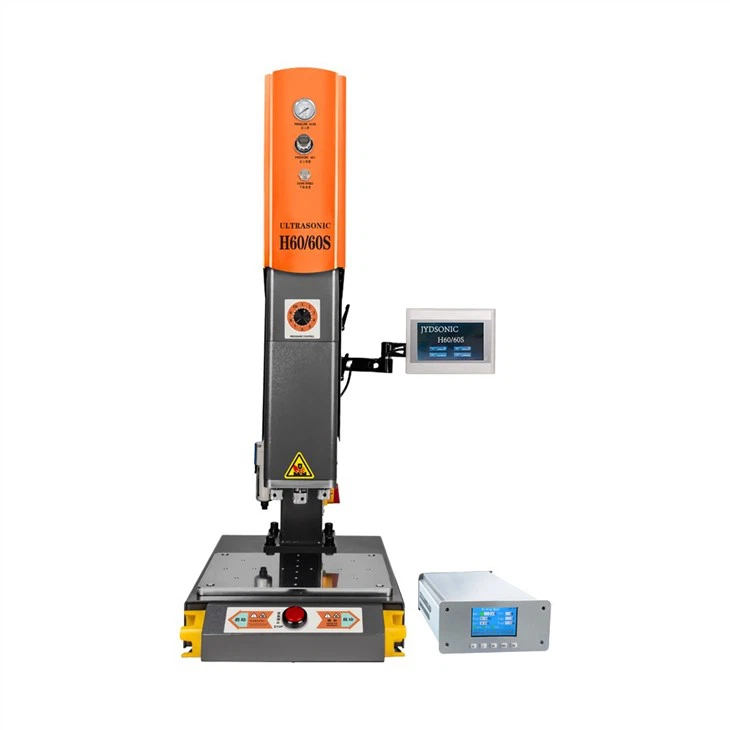

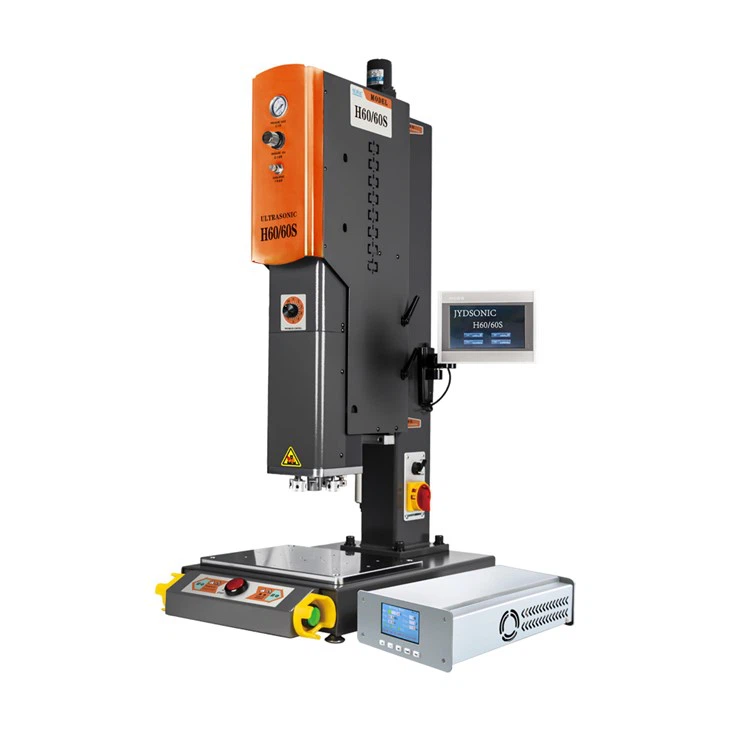

Jiayuanda Ultrasonic plastic welder machine-H60/60S. It is an intelligent digital ultrasound welding machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application....
Ultrasonic Cf Cards Welding Machine can be used not only for joining plastic parts, but also for embedding metal parts in plastic parts, connecting plastic parts on fixed metal or plastic parts, plastic coating, plastic plate spot welding, cutting of plastic products, sealing and trimming of plastic bags and making some small plastic parts(like CF cards) etc.
Product Parameter
Products | H60 series ultrasonic Cf cards welding machine | |||||||
Model No. | 15K-4200W | 15K-3200W | 15K-2600W | 20K-3000W | 20K-2500W | 30K-1200W | 35K-1200W | 40K-800W |
working frequency | 15KHZ | 15KHZ | 15KHZ | 20KHZ | 20KHZ | 30KHZ | 35KHZ | 40KHZ |
Working power | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 800W |
Working voltage/gas source | 220V±10% / 0.2～0.7Mpa | |||||||
Welding stroke | 100MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM |
FAQ：
Q：Calibration of ultrasonic Cf cards welding machine:
In order to achieve high production efficiency, the distance between the welding head and the plastic parts should be shortened as far as possible, but enough space should be left for convenient access to and placement of plastic parts.
1 Put the plastic parts in the base, adjust the air pressure to about 2kg, and use the lifting switch of the welding head to align the upper and lower touch.
2. Select a suitable distance between the welding head and the plastic parts to lock the fixed handle of the frame.
3 Adjust the limit bolt to lower the welding head, and there is still about 0.2mm space after pressing the plastic part. (for plastic parts with high requirements for welding depth, this space is correspondingly increased).
4 Adjust welding, pressure holding time, air pressure and test welding samples.
5 Observe the sample. If uneven welding is found, it is necessary to carefully adjust the balance of the base. The general principle is that the more severe the welding part is, the lower it should be. Pad a piece of paper on the opposite position of the base and raise the corresponding position of the base, so that the plastic part and the welding head fit well.
The factors affecting the ultrasonic processing of plastic parts are as follows:
(1) Design of contact surface
(2) Design of welding line
(3) Plastic material
(4) Outline and dimension of plastic parts
(5) Distance between welding surface and welding head
(6) Design of welding head
(7) Amplitude of welding head
(8) Accuracy of calibration model
(9) Selection of welding pressure and time parameters
For more details of Ultrasonic Cf Cards Welding Machine, please feel free to contact us !
