Non-woven Bag Making Machine

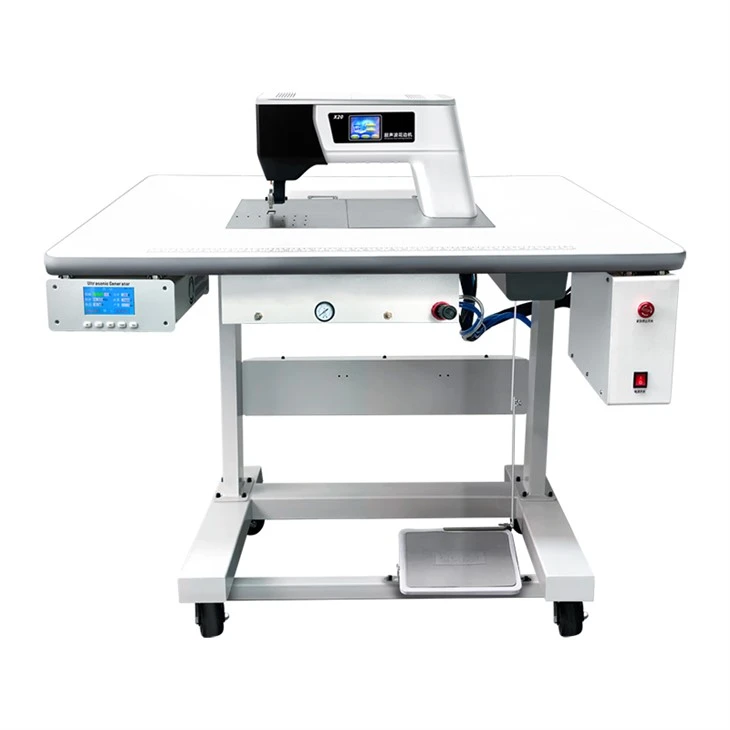

X20 ultrasonic lace machine is a 35khz intelligent ultrasonic welding machine. Intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head are composed of ultrasonic core components. No matter it is used in cutting, welding, and stitching, the product is flat, wrinkle-free, and highly efficient. Machine HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and other functions.....
Non-woven bag making machine is an application of ultrasonic technology in the garment industry. This product is carefully developed by using the latest ultrasonic technology at home and abroad. The characteristics of this machine are no black smoke, no sparks when stitching, no preheating, no temperature adjustment, easy to use and operate. Anyone can achieve the same stable effect without a lot of mental and material resources. During the bag making process, the stitching and joining are even and beautiful. It is one of the special equipment for ultrasonic non-woven fabric welding. It is suitable for sewing various packaging bags of chemical fiber, silk, cotton, etc., clothing bags, pants bags, environmental protection bags, change bags.
Parameter of Non-woven Bag Making Machine
| Model | X20 | X20S |
| Ultrasonic frequency | 35KHz | 35Khz |
| Ultrasonic power | ≤1000W | ≤1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic booster | / | / |
| Motor | Stepper motor + reducer400W 2.7A 1.27NM | Stepper motor + reducer400W 2.7A |
| Reducer | Ratio 1:10 | Ratio 1:10 |
| Working methods | Radially external | Radially external |
| Boding width | ≤8mm | ≤8mm |
| Flower wheel diameter | 45mm | 45mm |
| Max speed | 40m/min | 40m/min |
| Working space | 360mm*130mm | 360mm*130mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*700mm*1130mm | 1250mm*700mm*1130mm |
| Weight | 129.3KG | 129.3KG |
Features
Features of Non-woven Bag Making Machine
1. Use ultrasonic energy to cut, weld, seal, seam, punch, emboss, stitch, slit, shape, color and fold
2. Eliminate traditional needles and threads, reduce material costs, and can be customized for high-speed operation
3. No loose edges, wrinkles, shrinkage, and can be printed on colored paper shoelaces.
4. Continuous working for a long time, large mass production and high efficiency
5. No smoke, sparks and other hazards during operation, all machines have alarm functions
6. Simple operation, low labor cost, no needle and thread material loss
7. The precision and durable alloy roller adopts computer-aided design and engraves a variety of molds. It can also be designed according to the drawings.
8. Thousands of flower roller designs are simple and convenient to replace, and workers can replace them voluntarily.
FAQ
Q: What is your minimum order quantity?
A: Min order quantity: 1 set.
Q: Is there any protection?
A: We use plywood boxes to pack the ultrasonic machine so that it can be transported safely. We hope you will receive a good machine after long transportation.
Q: How can I contact you?
A: You can send me an inquiry. In addition, you can also contact me via email, WhatsApp, Skype, WeChat, QQ, etc. My contact information has been displayed under the company information.
Q: How to ship the your Non-woven Bag Making Machine?
A: Multiple choices. Shipping LCL and FCL; Express (DHL, TNT, UPS, FedEx, etc.); Air freight.
Q: How long can I receive the goods?
A: We usually ship within 7-15 working days.
Applications
Car covers, tents, packing belts, backpacks, travel belts, hand straps, curtains, raincoats, windbreakers, snow coats, toys, wallpapers, carpets, curtains, surgical gowns, surgical caps, medical masks, non-woven decorations/crafts, Non-non-woven quilt covers, gift bags, advertising bags, bed sheets, chair cushions, non-woven quilt covers, accessories, dust covers, table cloths, table cloths, bedding bags, pillow cases, chemical fiber cloths, non-woven cloths and hot melt cloths. It does not require suture needles. Snow clothes, toys, gloves, sanitary cushions, chair covers, duvets, masks, disposable feminine products, bra cushions, shoulder straps, hair accessories, etc., can replace sewing or perforation welding.
For more details of Non-woven Bag Making Machine, please feel free to contact us !
